LM2500 Gas Turbine
Gas Turbine
Also known as:
Turbine, Combustion Turbine
LM2500 Gas Turbine
Gas Turbine
Also known as:
Turbine, Combustion TurbineBuy
Made to Order
Product
Price:
Request for QuoteShipping:
Sea freightDelivery Time:
52 WeeksNote:
The LM2500 is an aeroderivative gas turbine. It's compact, efficient, and reliable—ideal for driving compressors and generators in both offshore and onshore operations.Sign in
Welcome back
Sign up
Sign-up and make easy contact all providers in the industry.
Let's create your free account
Executive Summary
The LM2500 delivers reliable, high-efficiency power with low emissions and flexible fuel options, making it ideal for industrial, utility, and grid applications.
Capable of producing up to 34,000 horsepower (25 MW), the LM2500 is commonly used to drive natural gas compressors, pumps, and electric generators. Its fast start-up time, modular design, and ease of maintenance minimize downtime and support continuous operations in demanding environments.
The LM2500’s strong track record and adaptability make it a trusted choice for operators seeking efficient and dependable gas turbine solutions in critical oil and gas operations.
Technical Specifications
| Power | 25.06 MW |
| Heat rate LVH | 9,204 Btu/kW-hr |
| Exhaust gas flow | 152.9 lb/s (69.4 kg/s) |
| Exhaust gas temperature | 1,051°F (566°C) |
| Power turbine speed | 3600 rpm |
| Inlet air flow | 152.9 lb/s (69.4 kg/s) |
| Output | 33,600 shp |
| High Pressure Compressor | 16-stage |
| High Pressure Turbine | 2-stage |
| Power Turbine | 6-stage free |
Features and Benefits
- High efficiency – lowers operating costs.
- Shock-qualified via barge test.
- Operates on gas or liquid fuels for broader energy adaptability.
- Split design enables fast repairs and life-extending upgrades.

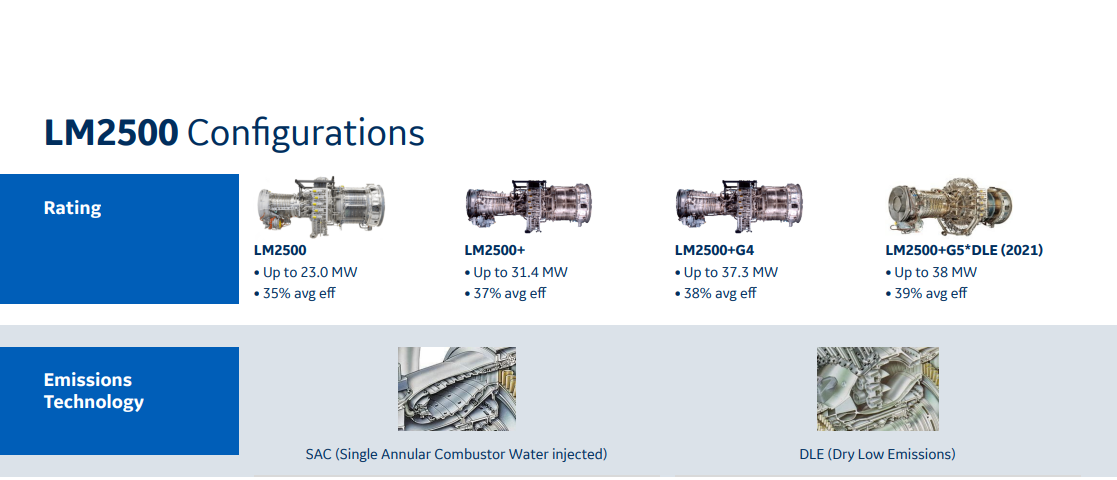

- Customizable Setup – Multiple configuration options to suit tailored power needs.
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.
Detailed Description

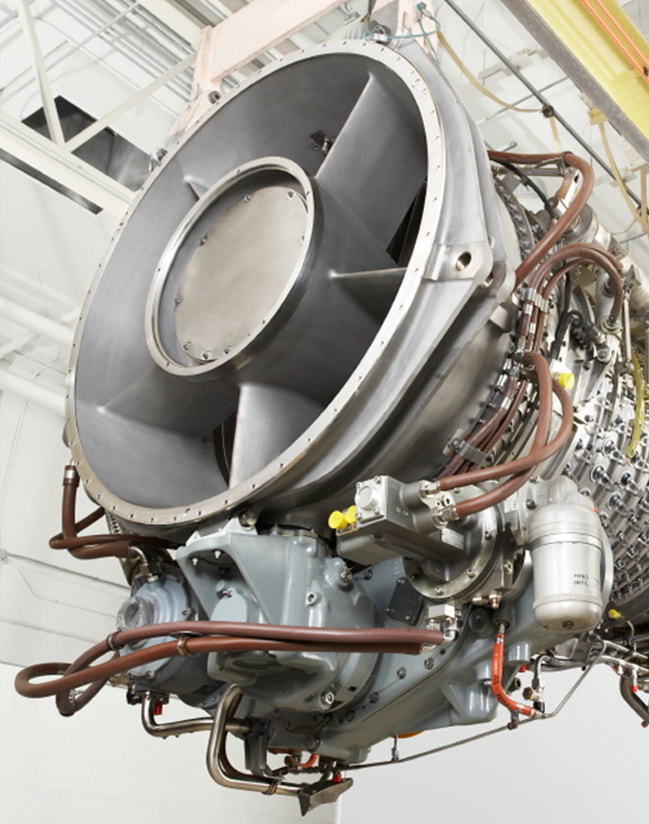

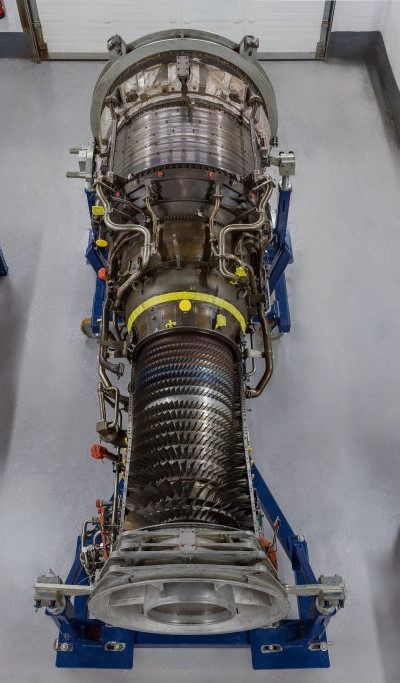

The LM2500 Gas Turbine is a high-efficiency power unit designed for use in industrial, marine, and utility applications. It’s commonly used for grid support, combined heat and power, and in mobile or remote power installations.

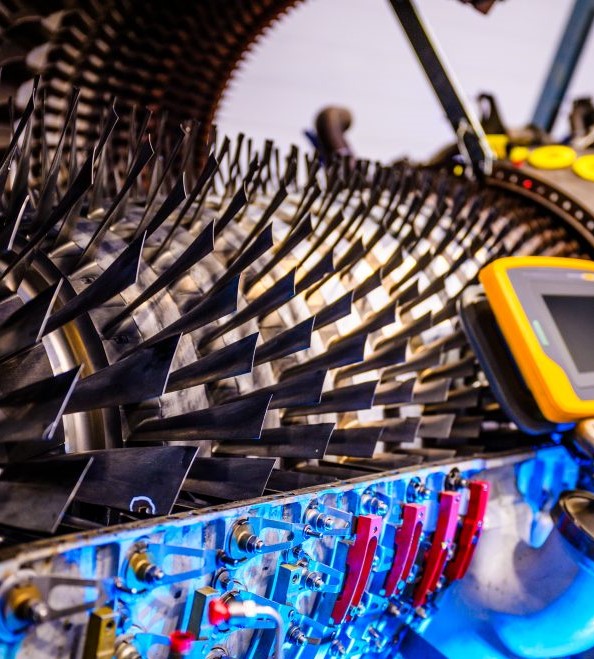

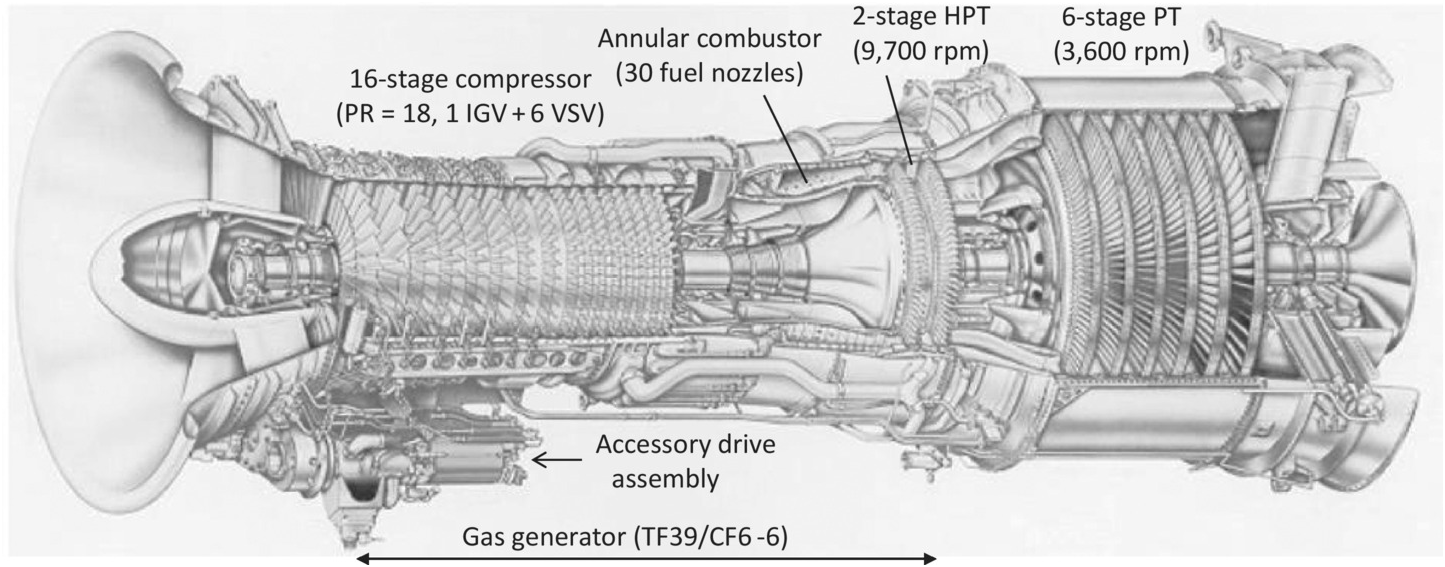

The turbine uses a single-rotor gas generator that can be connected to a power turbine. Inside, it includes a 16-stage compressor, an annular combustor, and a two-stage high-pressure turbine—to deliver strong performance in demanding environments.
Built for flexibility, the LM2500 is well-suited for operations that require frequent start-and-stop cycles. It can ramp up from a cold shutdown to full power in under five minutes, making it a reliable option for fast, on-demand power delivery.
Adding to its versatility, the LM2500 supports a wide range of fuels—including natural gas, diesel, aviation fuel, naphtha, LPG, ethane, ethanol, biodiesel, and more. This fuel flexibility makes it easy to integrate into different operating environments.
Its proven adaptability and performance have made the LM2500 the most widely used gas turbine in the 25–37 megawatt range.
In addition to high efficiency and reliability, the LM2500 delivers low emissions—even in challenging environments or when water availability is limited. With control system redundancy and several configuration options, it offers a customizable solution for dependable, efficient power generation.
