The LM2500XPRESS+G5 DLE UPT delivers the highest output in the XPRESS series, with Dry Low Emissions (DLE) and an upgraded power turbine (UPT). Its modular design allows for quick installation and fast, reliable power.

Executive Summary

The LM2500XPRESS+G5 DLE UPT is a modular gas turbine system designed for rapid deployment and straightforward installation. It incorporates the latest generation G5 power turbine, delivering improved output and efficiency that aligns with the performance of the LM2500+ gas generator.

This unit operates with Dry Low Emissions (DLE) technology, allowing it to meet strict NOx emission standards without the need for water or steam injection—simplifying operation and reducing environmental impact.

Engineered for both flexibility and speed, the LM2500XPRESS+G5 DLE UPT provides a reliable, high-performance power solution for applications that demand fast, clean, and efficient energy delivery.

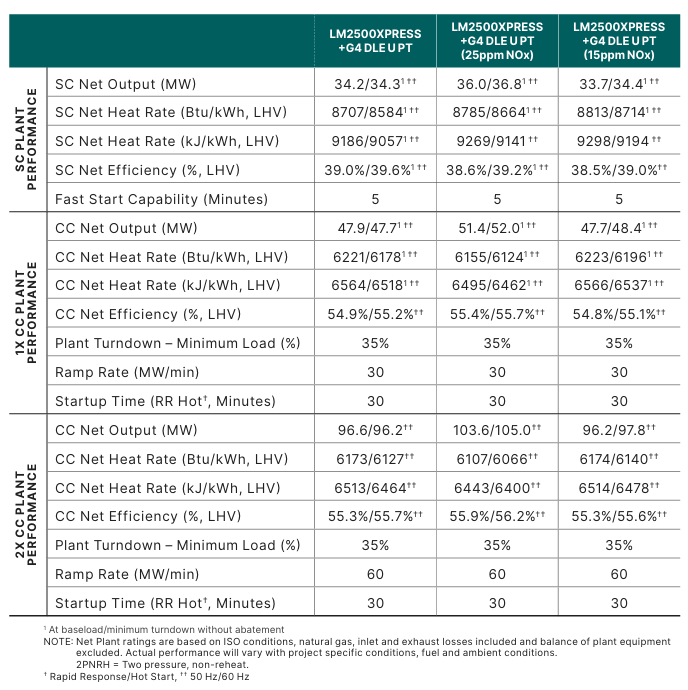

Technical Specifications

Net Output 36 MW
Net Heat Rate 8,785 Btu/kWh
Net Efficiency 38.6%
NOx Emissions 25 ppm
Combustor DLE
Exhaust Temperature 540 °C
Start-Up Time 5 Minutes
High Pressure Compressor 17-stage; added zero-stage blisk

Features and Benefits

  • Compatible with both 50 Hz and 60 Hz electrical grids
  • No requirement of water or steam injection
  • Increased power output and efficiency
  • Quick ramp-up
  • Improved output and efficiency

Download Attachments for free


Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

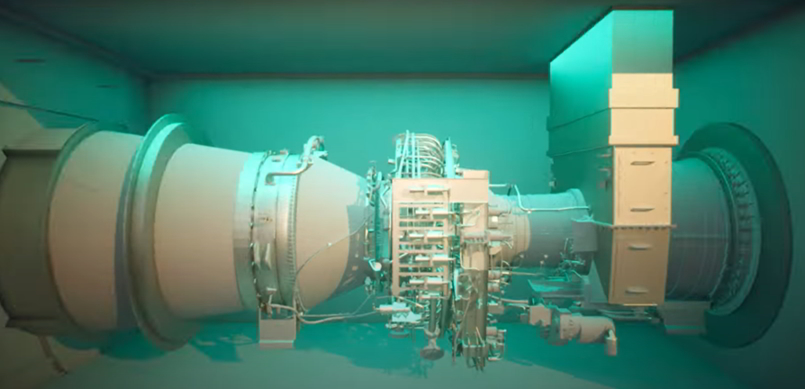

The LM2500XPRESS+G5 DLE UPT is a modular aeroderivative gas turbine system built for fast, flexible, and efficient power generation in both onshore and offshore environments. It is particularly well-suited for applications across LNG facilities, gas pipelines, gas processing plants, and general power generation, including electricity production at both 50 and 60 Hz, without the need for a speed reducer.

The "+G5" designation refers to its fifth-generation power turbine, offering the highest output and efficiency in the 20–40 MW class. It supports both high-speed and low-speed power turbine configurations, allowing integration into a variety of grid or mechanical drive systems.

At its core, the G5 includes a high-pressure compressor derived from the LM2500+G4, now redesigned for longer service life. In a simple cycle, it achieves up to 41% efficiency, which is notable for a turbine of this size class. The system can start from cold and reach load in about five minutes, making it ideal for rapid-response applications.

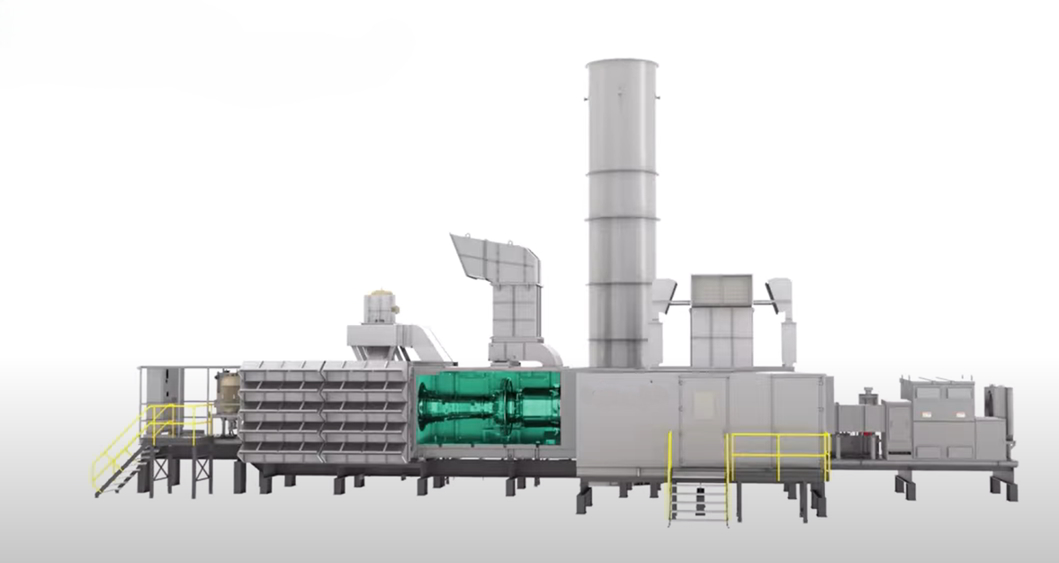

The unit is built for speed and simplicity. It’s shipped in preassembled modules, with a compact footprint that helps reduce installation time.

The Dry Low Emissions (DLE) system supports environmental compliance without requiring water or steam injection, simplifying operations and reducing resource demands.

Altogether, the LM2500XPRESS+G5 DLE UPT provides a practical solution for projects that need reliable, fast, and efficient power without a complex setup.
