Executive Summary
The LM2500 SAC version is designed for greater flexibility in fuel options and emissions control.
At the core of the LM2500 SAC is the Single Annular Combustor technology, which enables more precise fuel-air mixing —leading to higher combustion efficiency and lower emissions.

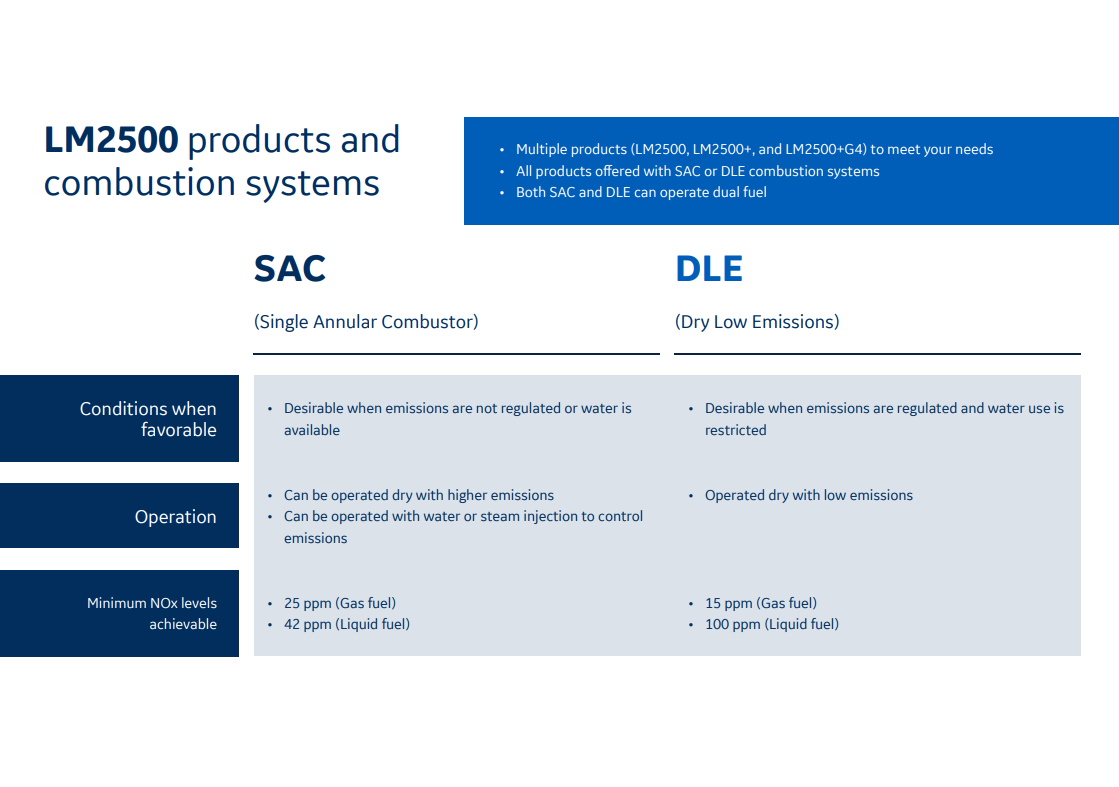

With fast startup times, robust cycling capabilities, and strong environmental performance, the LM2500 SAC supports operators meet strict emissions standards while maintaining dependable power generation—even in regions with varying fuel availability. The Singular Annular Combustor is especially desirable when emissions are not regulated or water is available.
Technical Specifications
| Power | 25.06 MW |
| Heat rate LVH | 9,204 Btu/kW-hr |
| Exhaust gas flow | 152.9 lb/s (69.4 kg/s) |
| Exhaust gas temperature | 1,051°F (566°C) |
| Power turbine speed | 3600 rpm |
| Inlet air flow | 152.9 lb/s (69.4 kg/s) |
| Output | 33,600 shp |
| High Pressure Compressor | 16-stage |
| High Pressure Turbine | 2-stage |
| Power Turbine | 6-stage free |
Features and Benefits
- Lower NOx and CO emissions
- Designed to meet more stringent emissions regulations
- Better suited for regions with emissions restrictions or variable fuel supply
- Supports a wider range of fuels
- Fuel-Air mixture precision
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.
Detailed Description

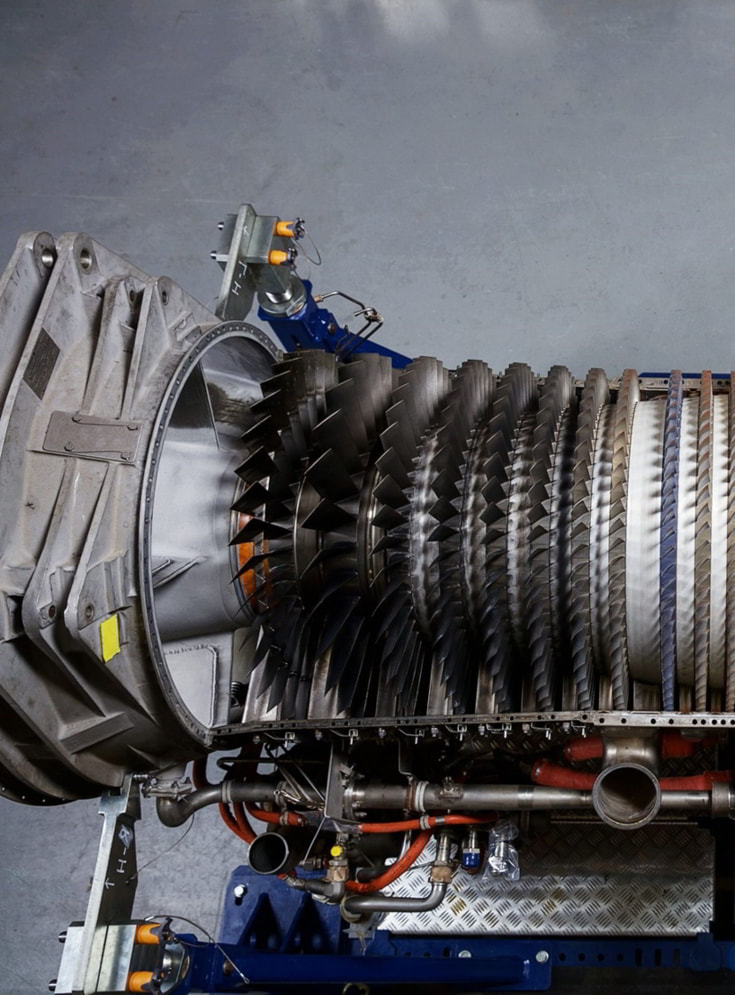

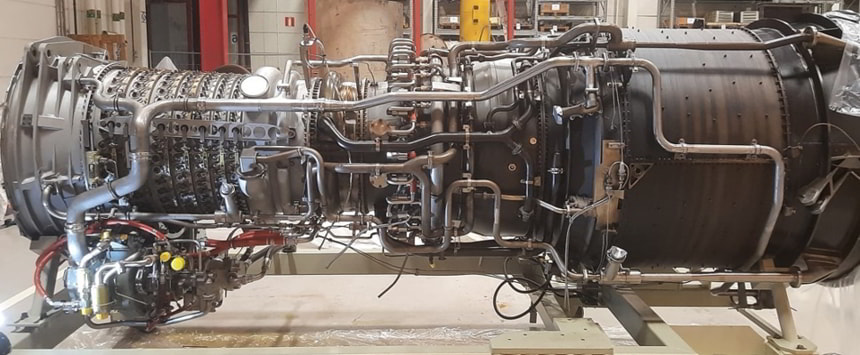

The LM2500 SAC Gas Turbine features a Single Annular Combustor (SAC) system—a type of combustion chamber where fuel and air are mixed and burned in a single, annular-shaped chamber. This design allows for efficient combustion with lower emissions and better fuel-air mixing. The turbine also supports dual-fuel capabilities, operating on both gas and diesel, offering greater flexibility in environments where fuel availability may vary.
Its open configuration is designed for accessibility, making maintenance tasks faster and more straightforward. This also allows for quicker engine removal or replacement, helping reduce downtime during service operations.
The LM2500 SAC is widely used across multiple industries, including electrical power generation, mechanical drive systems, and marine propulsion, due to its reliability, fuel flexibility, and proven performance in demanding conditions.
Engineering Data
